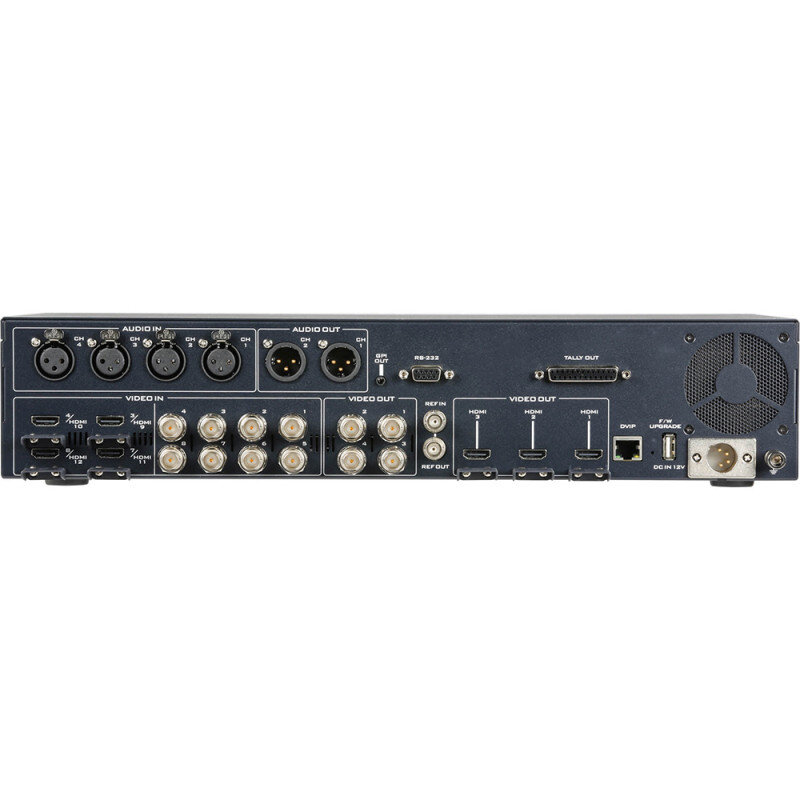

SE-4000 - 12 inputs UHD video switcher (split unit)

Technical characteristics

• Video standard: 4K & HD
• Video format
  • Input: 3840 × 2160p: 60/59.94/50/30/29.97/25/24/23.98 - 1080p: 60/59.94/50/30/29.97/25/24/23.98 - 1080i: 60/59.94/50, 720p: 60/59.94/50 - VG A, XGA (1024 × 768), SXGA (1280 × 1024), - UXGA (1600 × 1200), WUXGA (1920 × 1200)
  • Output: 3840 × 2160p: 60/59.94/50/30/29.97/25/24/23.98 - 1080p: 60/59.94/50/30/29.97/25/24/23.98 - 1080i: 60/59.94/50, 720p: 60/59.94/50
• Video processing
  • SDI: 4:2:2 10-bit
  • HDMI: YUV 4:2:2 10-bit, RGB: 4:4:4 8/10-bit
• Input routable / crosspoint: yes
• Video input: total 8 live inputs (select 8 from 12) - 8 × 12G-SDI - 4 × HDMI
• Computer graphic interface: 4 via HDMI
• Video output: 4 × 12G-SDI - 3 × HDMI - All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
• Built-in multi-view monitoring out: HDMI & SDI assignable
• Analogue audio input: 4 × analogue XLR
• Analogue audio output: 2 ×x analogue XLR
• Digital embedded audio support: input 4 channels, output 4 channels
• Audio delay calibration: up to 16 fields or 8 frames per channel
• A+V Switching: yes
• Chromakey: 4
• Title creator: yes, CG-200 software free download
• USK: 4 × Keyer support Chromakey/Linear/Luma Key
• DSK: 2 × DSK support Lumakey & Linear key (Key/Fill)
• Picture in Picture (PiP): 2
• Logo insertion: 2
• Still store: 999+
• Effects: DVE, FTB, Cut, 32 wipe with border
• Transition preview: full transitions preview
• Sync / Reference IN/OUT: built-in Genlock - support external sync with loop-thru
• Tally output: 1 × D-sub 25-pin, dual color
• PC remote control: DVIP (Ethernet)
• Firmware update: Ethernet
• Special features: 5" touchscreen display
• Chassis: 2 units, 2U rack-mount mainframe
• Power: 12 V_DC / 108 W
• Operating temp. range: 0 ~ 40 °C
• Dimension (L × W × H): 43.3 × 31.2 × 7.6 mm (switcher), 43.2 × 25.2 × 8.8 mm (main unit)
• Weight: 7.1 kg
• What's in the box:
  • 1 × SE-4000 main unit
  • 1 × SE-4000 control board
  • 2 × AD switch 12 V_DC
  • 2 × AC cord
  • 1 × Ethernet cable
  • 12 × screw
  • 2 × 2U ear rack
